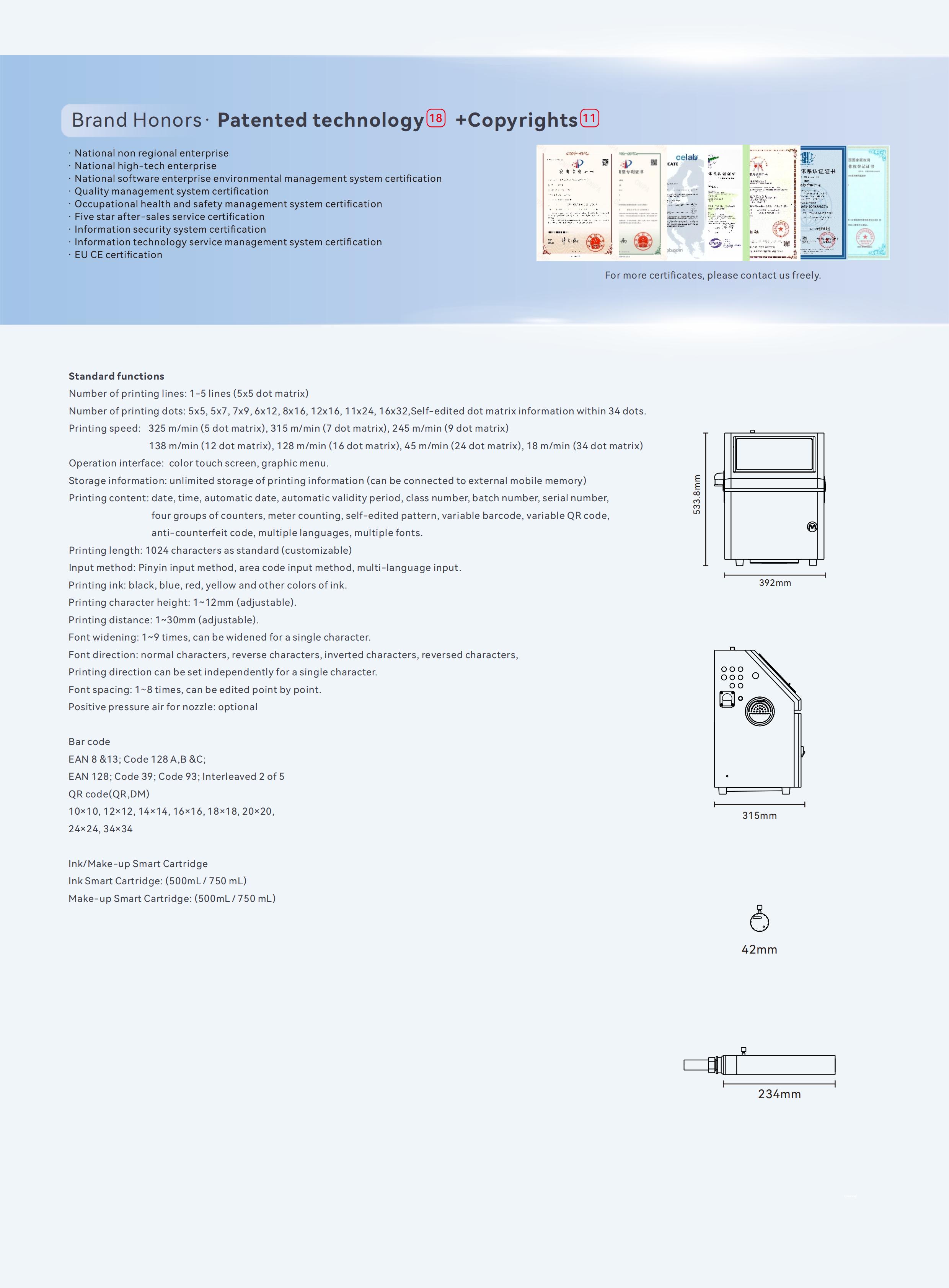

Industrieller S760 Continuous Inkjet-Drucker

Number of printing lines

1-5 lines (5x5 dot matrix)

Number of printing dots

5x5, 5x7, 7x9, 6x12, 8x16, 12x16, 11x24, 16x32,

Self-edited dot matrix information within 34 dots.

Printing speed

325 m/min(5dot matrix)

315 m/min(7 dot matrix)

245 m/min(9 dot matrix)

138 m/min(12 dot matrix)

93 m/min(16 dot matrix)

37 m/min(24 dot matrix)

18 m/min(34 dot matrix)

Operation interface

Color touch screen, graphic menu.

Storage information

Unlimited storage of printing information

 (Can be connected to external mobile memory)

Printing content

Date, Time, Automatic date, Automatic validity period, Class number, Batch number, Serial number, Four groups of counters, Meter counting, Self-edited pattern, Variable barcode, Variable QR code, Anti-counterfeit code, Multiple languages, Multiple fonts.

Bar code

EAN 8&13, Code 128 A,B &C

EAN 128, Code 39, Code93, Interleaved 2 of 5

QR CODE (QR,DM)

10x10, 12x12, 14x14, 16x16, 18x18, 20x20, 24x24, 34x34

Printing length

1024 characters as standard (customizable)

Input method

Pinyin input method, area code input method, multi-language input.

Printing ink

Black, Blue, Red, Yellow, and Other Colors of Ink.

Printing character height

1-12mm (adjustable)

Printing distance

1-30mm (adjustable)

Font widening

1~9 times, can be widened for a single character.

Font direction

Normal characters, Reverse characters, Inverted characters, Reversed characters

Printing direction can be set independently for a single character.

Font spacing

1-8 times, can be edited point by point.

Temperature

-10℃~45℃ 304 stainless steel case

Humidity

10-95% non-condensing

Standards

EU CE certification
